HWAM 3520

Ecofriendly stove with a harmonious, well-proportioned expression

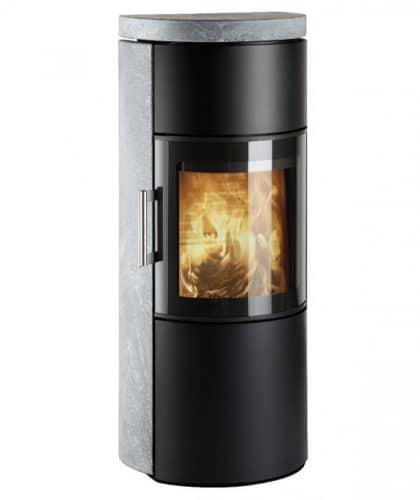

With the perfect proportions and many design options HWAM 3520c is a functional stove with a wealth of practical details. Behind the attractive exterior there is a handy storage space at the bottom and, at the top, a heat storage compartment that can be filled with heat-retaining stone. The HWAM 3500 series are ecofriendly stoves with very low particle emission and high efficiency.

Options:

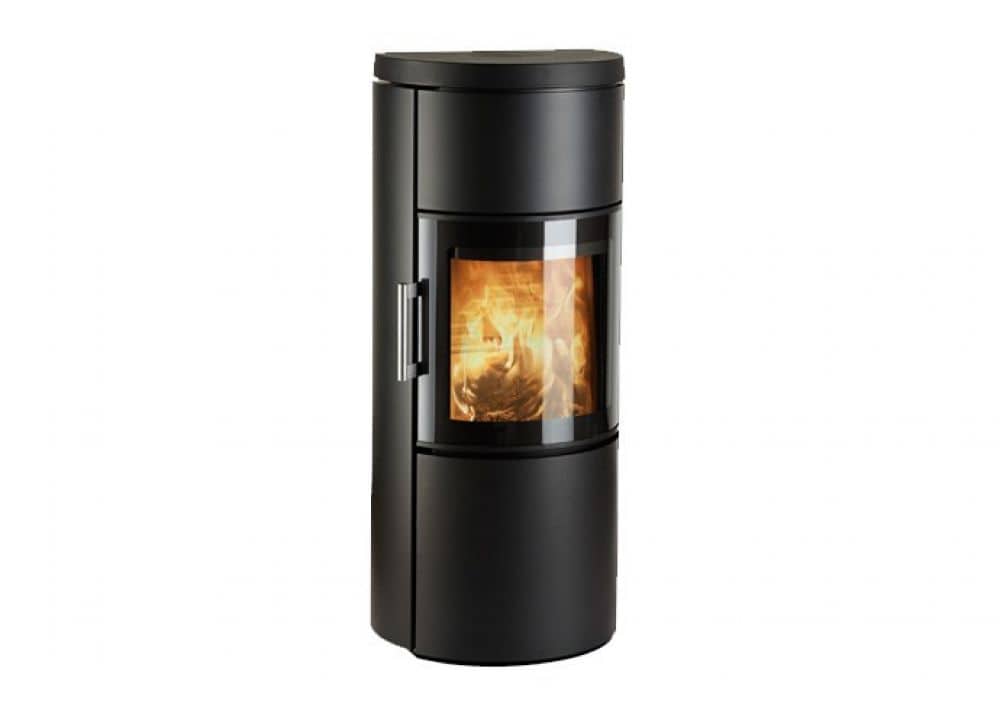

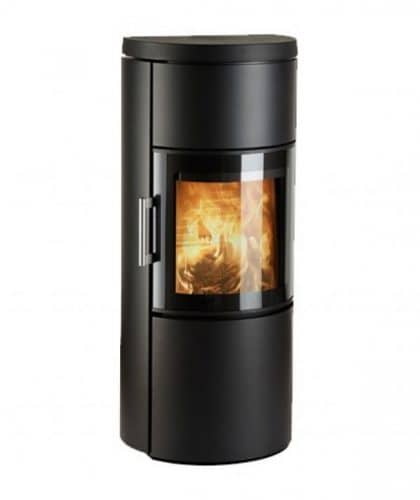

HWAM 3520c (classic door) – Available in grey or black steel

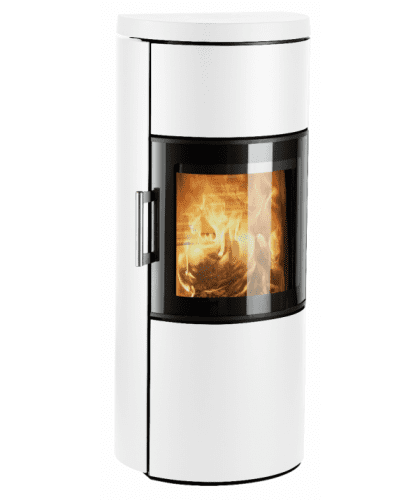

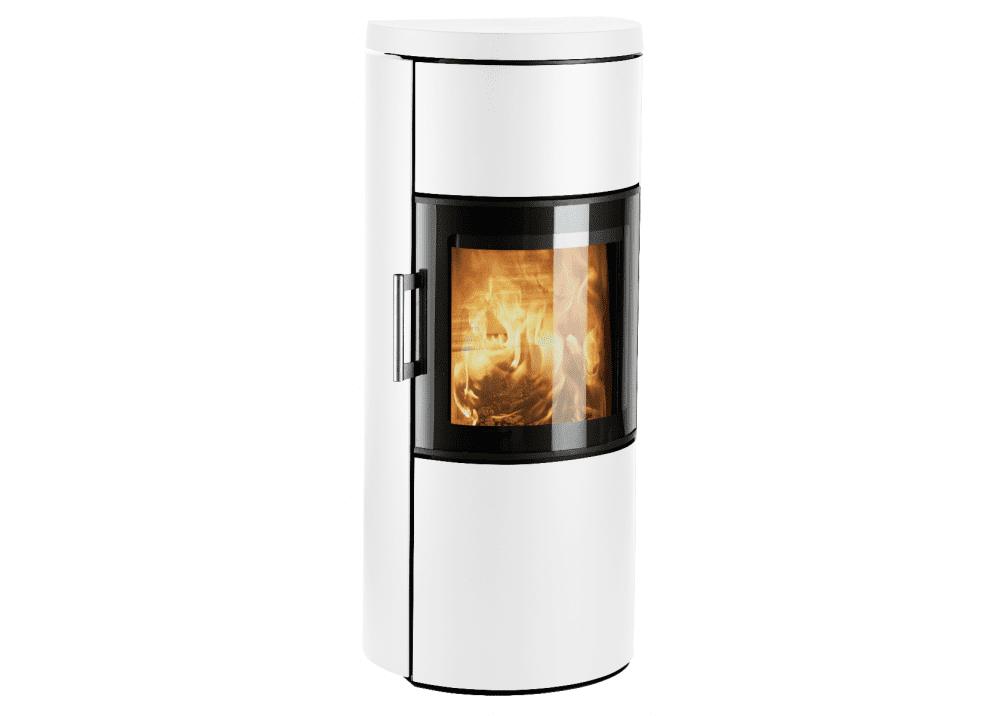

HWAM 3520m (modern door) – Available in white, grey or black steel

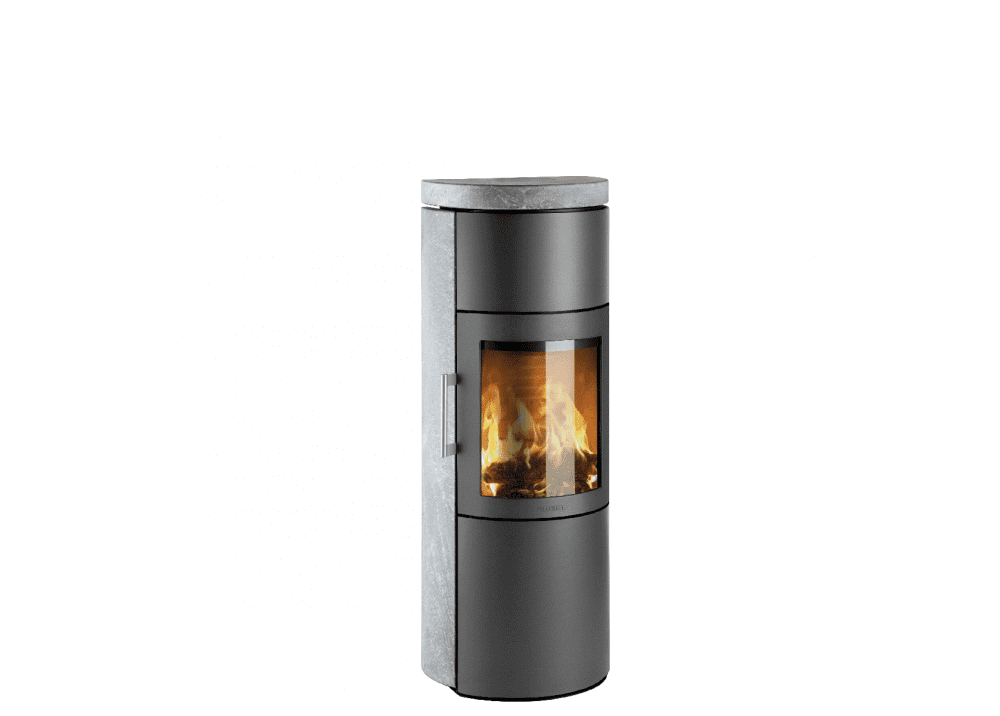

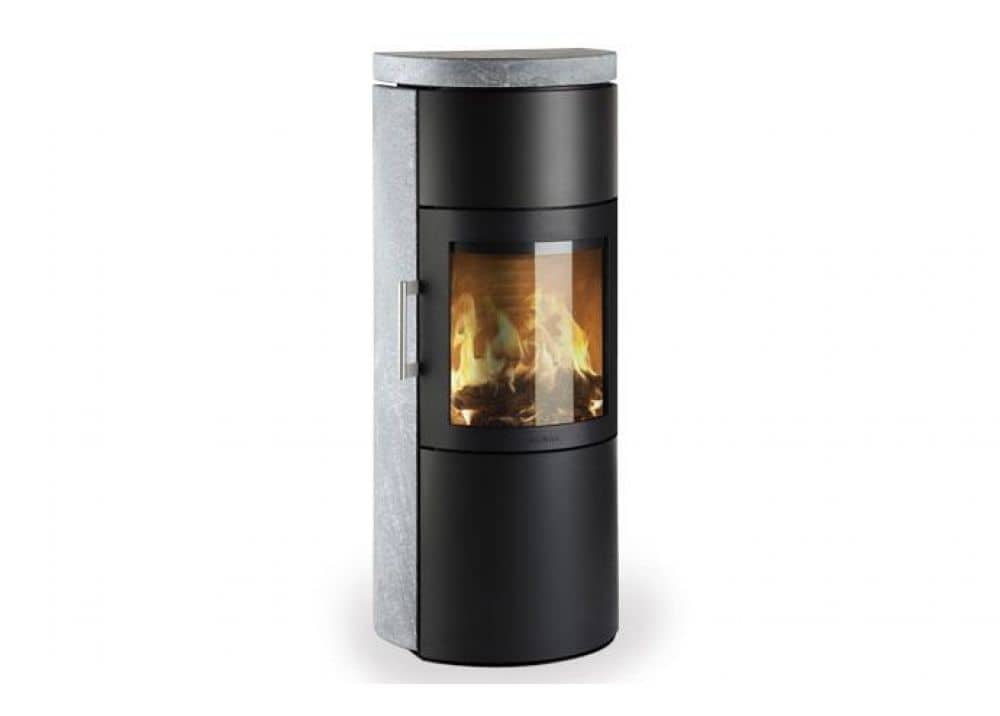

HWAM 3520c – Available with soapstone, sandstone – black or grey steel
HWAM 3520m – Available with soapstone, sandstone – black or grey steel

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.

Technical

• Energy efficiency class HWAM®Autopilot™ A
• HWAM®SmartControl™ A+
• HWAM® Autopilot™
• HWAM® Smartcontrol™
• Capacity 2-7kW
• Nominal heat output 4.5kW
• Efficiency 78%
• Smokeoutlet, Ø 150mm
• Combustion chamber width 33cm

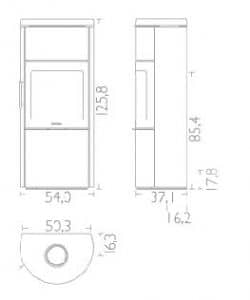

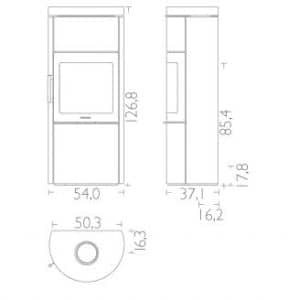

• Dimensions height 125.8cm, Width 54cm, Depth 37.1cm
• Distance to inflammable materials Back 10cm, Side 20cm, Front 80cm
• Distance to inflammable materials, corner location 13-43cm
• Weight 118kg Stones 44kg
