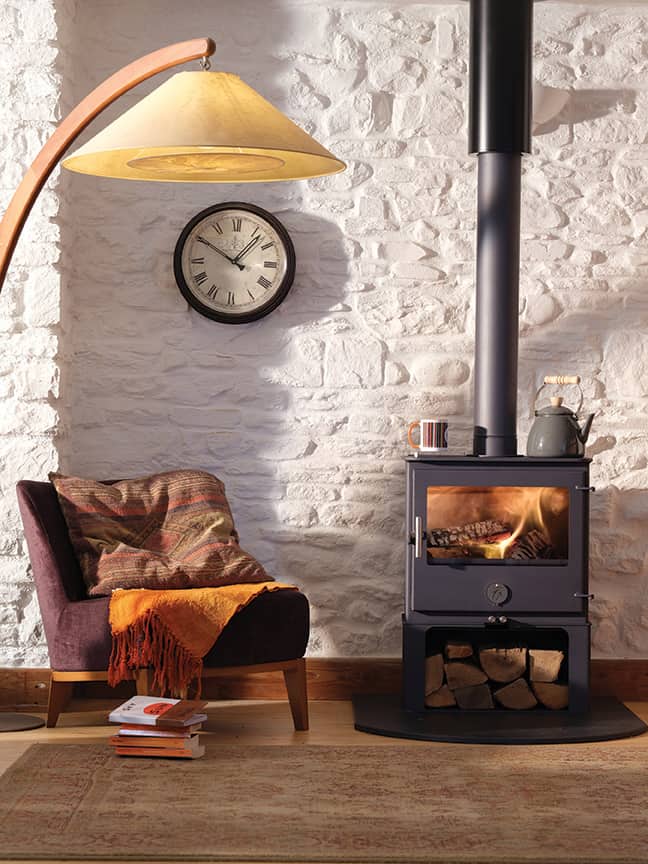

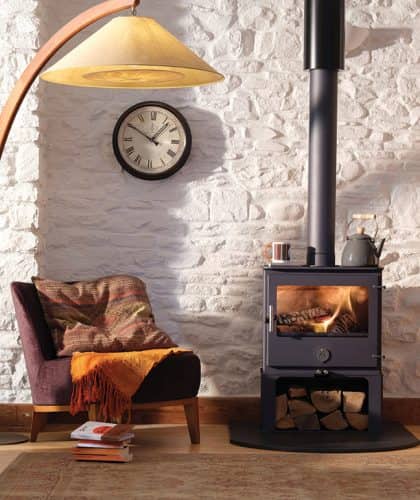

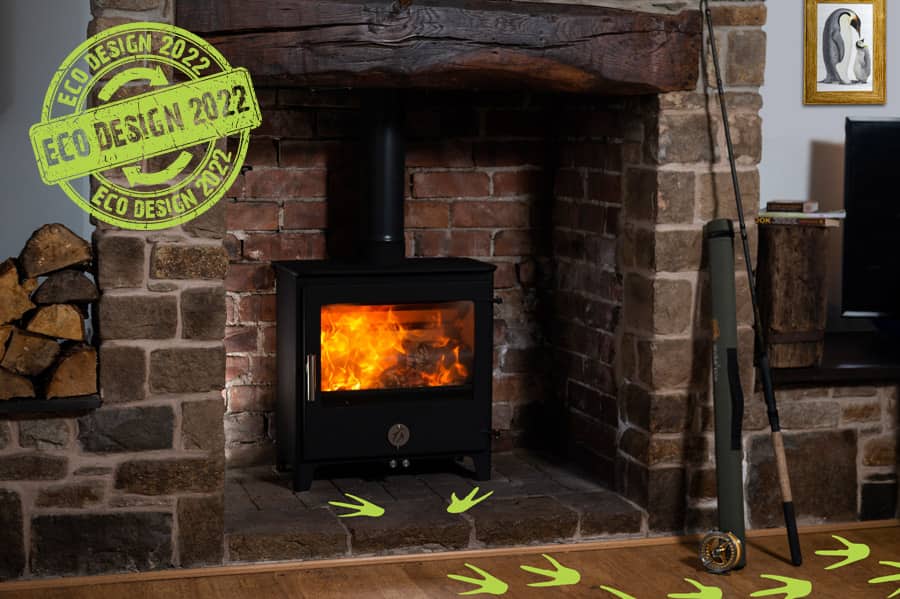

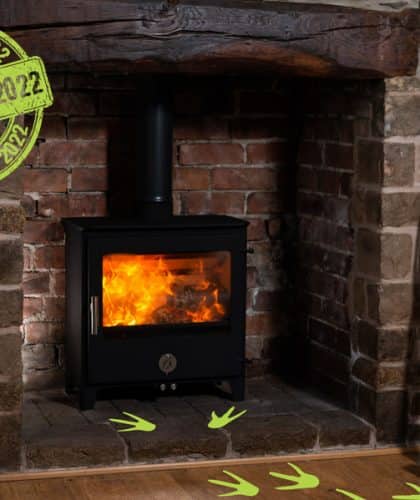

The Woody Eco (Multifuel) or (Wood)

The slim eco stove with big world views and a captivating dual nature.

If you have a big space in your life and you want to burn both wood and solid fuel, then this multi fuel version of Woody is the one for you. This stove allows you to reduce emissions and breath cleaner air but to have the choice of the fuel that you choose. Like its eco brother it is generously proportioned, yet slim, efficient, clean burning and quietly, modestly, magnificent.

What’s More

To achieve lower emissions this penguin uses a combination of three features. Secondary heat retaining glazing, so the fire box stays hotter. Re-designed combustion air nozzles diffuse the incoming oxygen, allowing for a more complete combustion. Lastly the flow of air going toward the flue is interrupted, which increases the dwell time in the fire chamber, again contributing to more complete combustion.

Penguin Facts

The Woody Eco (Multi Fuel) is 83% efficient on wood and 87% efficient on anthracite, with similar particulate emissions, well within the 2022 Ecodesign requirements.

Like its eco brother, this stove also has secondary heat retaining glazing, with air wash and a landscape view of the fire. It also has the new Chilli Penguin handle.

The Woody Eco is also available with a catalytic converter

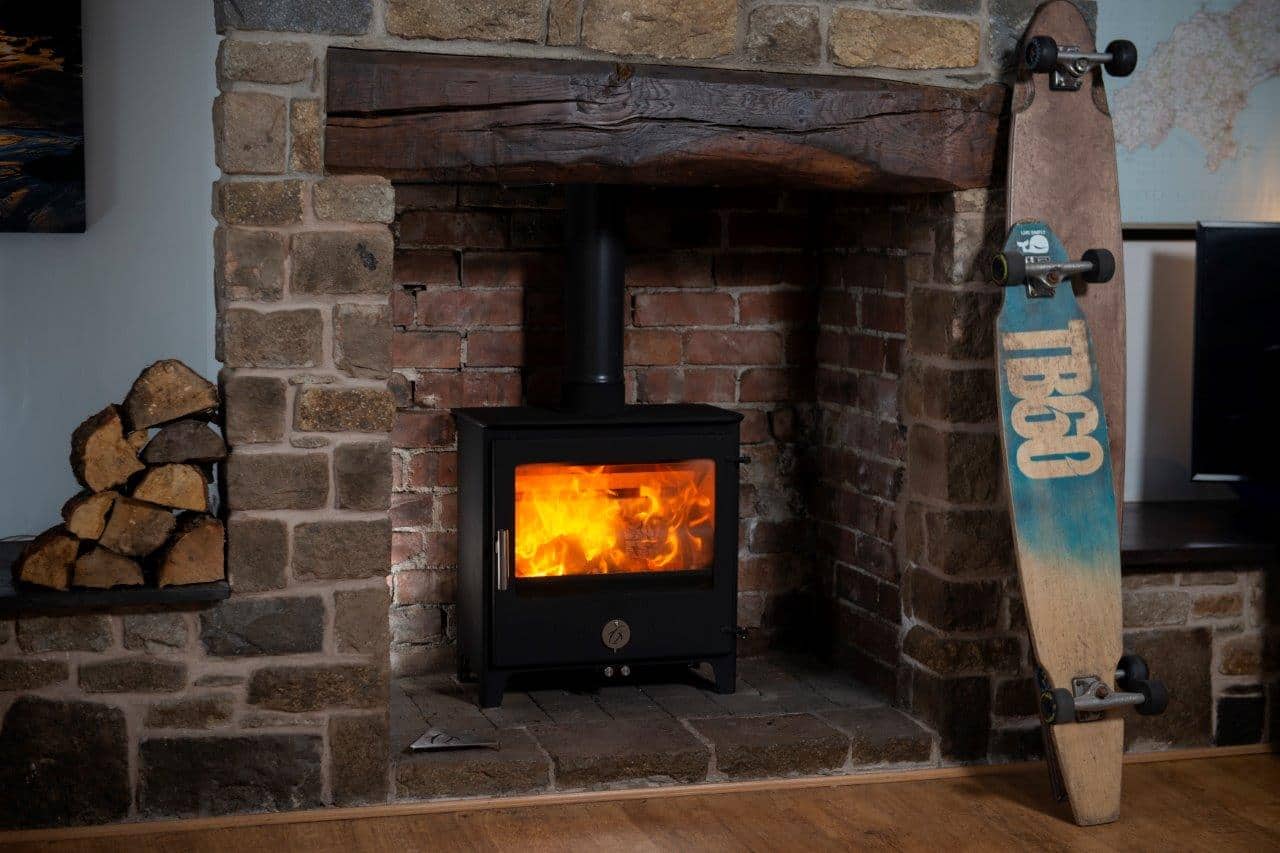

The Woody Eco Cat (Wood Only)

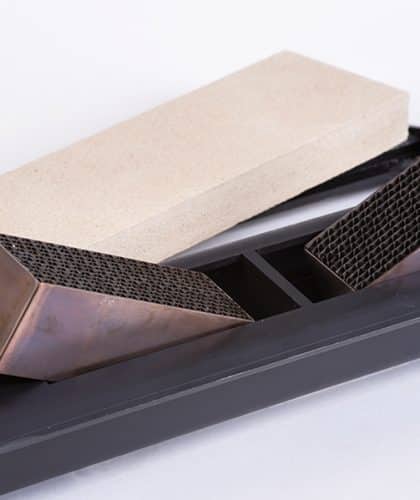

Catalytic Converter

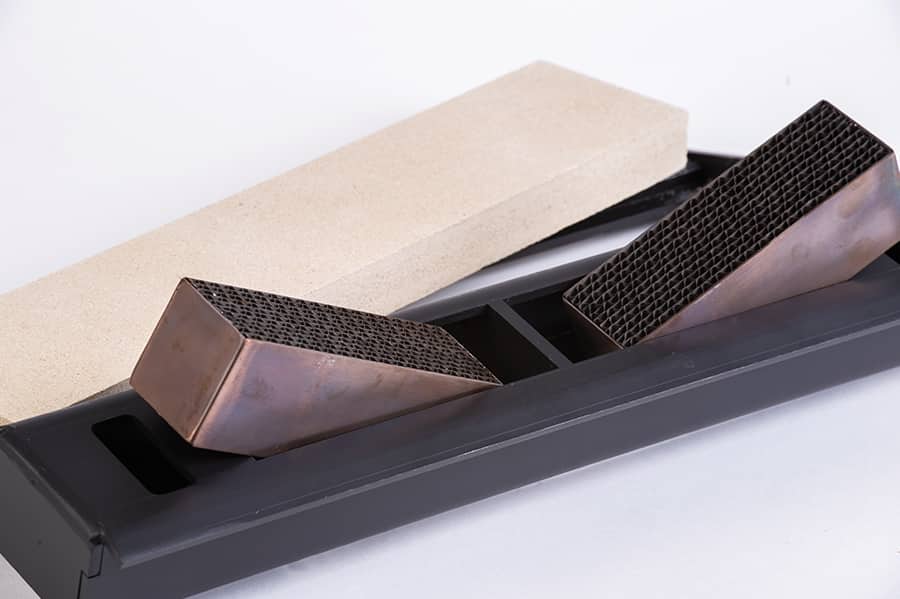

A catalytic converter consists of a honeycomb type structure with a large surface area which is coated with catalytic materials. As the gases pass over the surface chemical reactions occur, resulting in changes to the composition of the flue gases. In a wood stove, oxidation of the products of incomplete combustion, change the make-up of the gases, for example toxic carbon monoxide and hydrocarbon gases are oxidised into less harmful carbon dioxide and water. These chemical reactions release heat energy. This is effectively a secondary combustion process, as it raises the temperature of the converter to the point where solid soot particles can be burned. For this reason they are sometimes referred to as ‘catalytic combustors’.

Penguin Facts

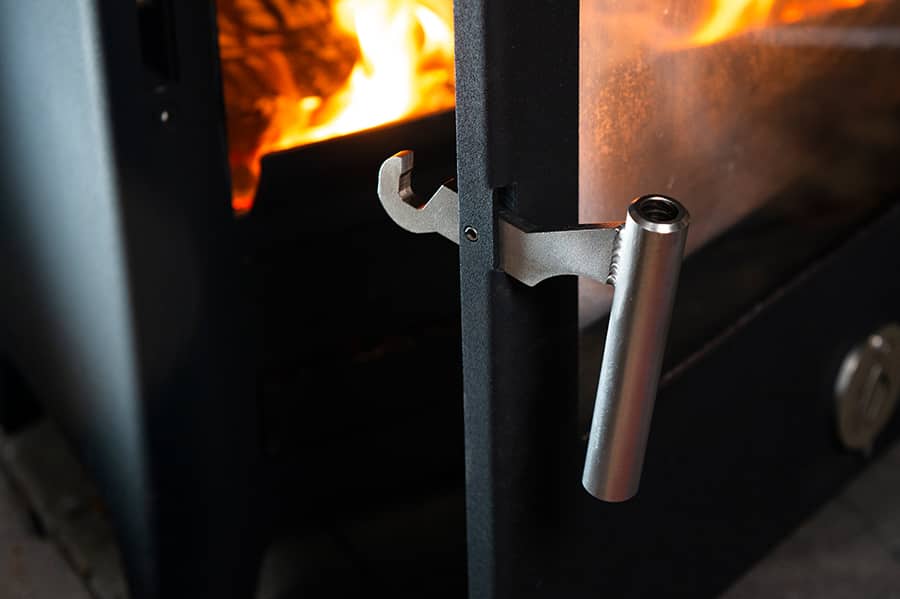

The secondary heat retaining glazing with air wash and the landscape window offer a clear, generous view of the fire. It also has the newly designed Chilli Penguin handle.

All Prices shown are RRP and include VAT
This stove now come with a factory fitted SMOKE CONTROL kit.
Penguin black is the standard colour, supplement charged for other colours

Technical

• Nominal Output 5kW
• Efficiency 87% Seasonal 77%
• CO Content @ 13% O2 0.04%
• Particulates @ 13% O2 16mg / m3

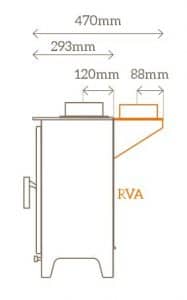

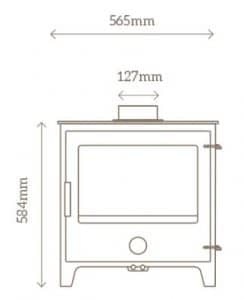

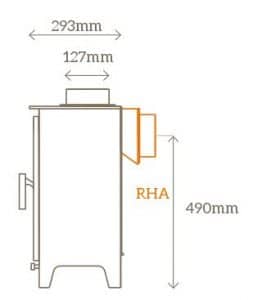

• Dimensions Width 565mm, Depth 293mm, Height 584mm
• Smoke Control KitPre-Fitted
• Optional Direct Air Kit Available
• Max Log Dimensions 270x100mm
• Flue Collar Diameter 127mm
• Flue Size Required Min 125mm
• Distance to Combustibles (With Insulated Flue) Side 400mm, Rear 150mm, Above 550m
• Distance to Non Combustibles Sides 100mm, Rear 50mm, Above 150mm
• Constructional Hearth Type 12mm
• Weight 88kg
• Tested to EN13240:2001 & EN13240A2:2004
